ISO Hot Air Box Sintering Debinding Furnace Heat Treatment

Place of Origin : China

Brand Name : Chitherm

MOQ : 1

Price : Negotiable

Packaging Details : Customized

Delivery Time : Customized

Payment Terms : Customized

Supply Ability : 50 Sets/Year

Model Number : Hrf230-05

Range of Applications : Industrial

Type : Electric Holding Furnace

Usage : Steel Molding

Fuel : Electric

Atmosphere : Air

Effective Chamber Dimensions : 550*660*640mm(W*D*H)

Transport Package : Wooden Packaging

Specification : 800*1100*1800mm(W*H*D)

Trademark : Chitherm

Origin : China

HS Code : 8514101000

Customization : Available

Certification : ISO

Place Style : Vertical

Contact Now

ISO Certified Hot Air Box Sintering And Debinding Furnace Heat Treatment
Product Specifications
Attribute Value
Range of Applications Industrial
Type Electric Holding Furnace
Usage Steel Molding
Fuel Electric
Atmosphere Air
Effective Chamber Dimensions 550*660*640mm (W*D*H)
Transport Package Wooden Packaging
Specification 800*1100*1800mm (W*H*D)
Trademark Chitherm
Origin China
HS Code 8514101000
Supply Ability 50 Sets/Year
Customization Available
Certification ISO
Place Style Vertical
Product Description

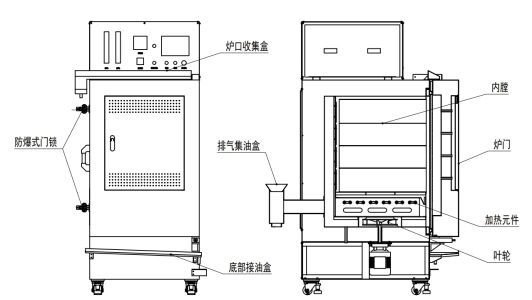

800*1100*1800mm W*H*D Dimensions and ISO Certified Chitherm Hrf230-05 Hot Air Box Furnace for Heat Treatment Processes

Application

Widely used in the debinding processes of LTCC and MLCC manufacturing.

Technical Specifications
  • Rated temperature: 400°C
  • Maximum temperature: 450°C
  • Effective dimensions: 550*660*640mm (W*H*D)
  • Temperature uniformity: ±3°C
  • Temperature stability: ±1°C
  • Sintering atmosphere: Air
  • Heating elements: Stainless steel heaters
  • Compact design with small footprint
  • The chamber adopts a 12-grid structure forming 12 airflow channels. Airflow volume is adjusted by controlling the opening angle of air outlet panels in each channel, achieving high temperature uniformity
  • Tested temperature uniformity within ±3°C
ISO Hot Air Box Sintering Debinding Furnace Heat Treatment
Delivery List
Item Note Qty.
Basic Components Furnace 1 unit
Inspection certificate Certificate of major outsourced components 1 SET
Technical Documents Instructions, technical documents of the major outsourced parts, etc 1 SET
Key Components Heating Element Stainless steel heater
Touch Screen 1 SET
Temperature Controller 1 SET
Blower 1 PC
Circulation Fan 1 SET
Spare Parts SSR 1 pcs
Heating Element Stainless steel heater 1 PC
Facility Requirements
  • Environmental Conditions: temperature: 0~40ºC, humidity ≤ 80%RH, no corrosive gas, no strong airflow disturbance
  • Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.2-0.4MPa, gas consumption of 10-20m³/h
  • Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 20 m³/h
  • Ground Requirements: horizontal, no obvious vibration, load-bearing > 300 Kg/m²
  • Power Condition(TBD): capacity > 16kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green
  • Installation Site: 1000mm*1500mm*3000mm(W*D*H), with an installation area greater than 1.5m²
